5C20.60 - Displacement Current

Hook the wave generator to an amplifier, and then connect the output of the amplifier to the parallel plate capacitor. Connect the sensing coil to the input of the other amplifier which is connected to a speaker. An amplified frequency of about 50 Hz going into the capacitor works well. Move the sensing coil around the capacitor plates. Notice that the coil only picks up a signal when held in the correct polarized position.
EXPERIMENTAL NOTES: Run this at a frequency of 1000 to 3000 Hz. Use the smaller set of parallel plates. The current setup does not need the "Clamp box". Channel L volume on the Pyle Amplifier should be up half way. Sensor volume on the other amplifier should be up all the way. NOTE: We are probably hearing electrostatic components and not the true displacement current.
Code Number:
5C20.60
Demo Title:
Displacement Current
Condition:
Excellent
Principle:
Displacement Current
Area of Study:
Electricity & Magnetism

Disclaimer

Equipment:
Amplifiers, speaker, Pasco sensing coil, parallel plate capacitor, wave generator.
Procedure:

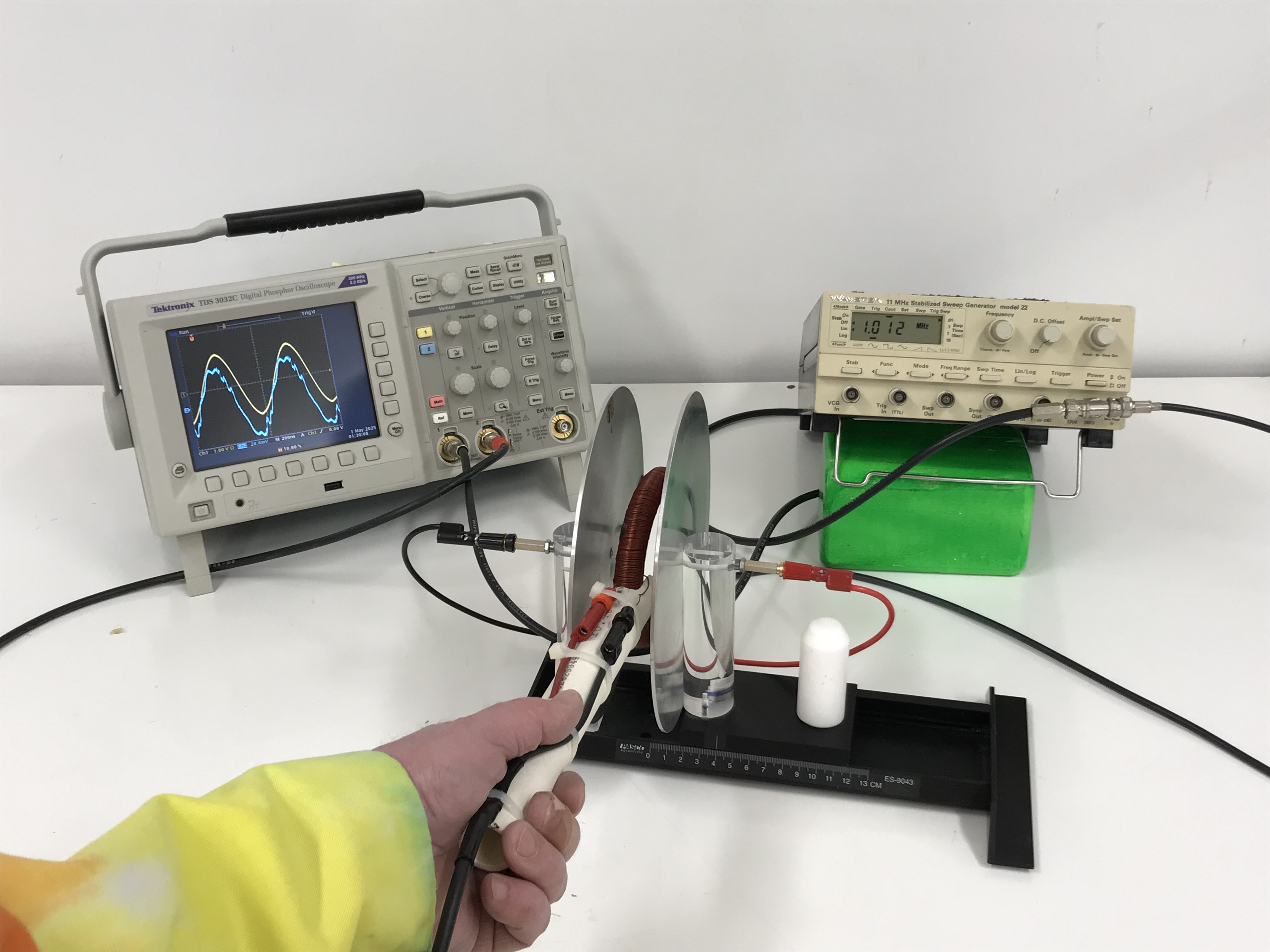

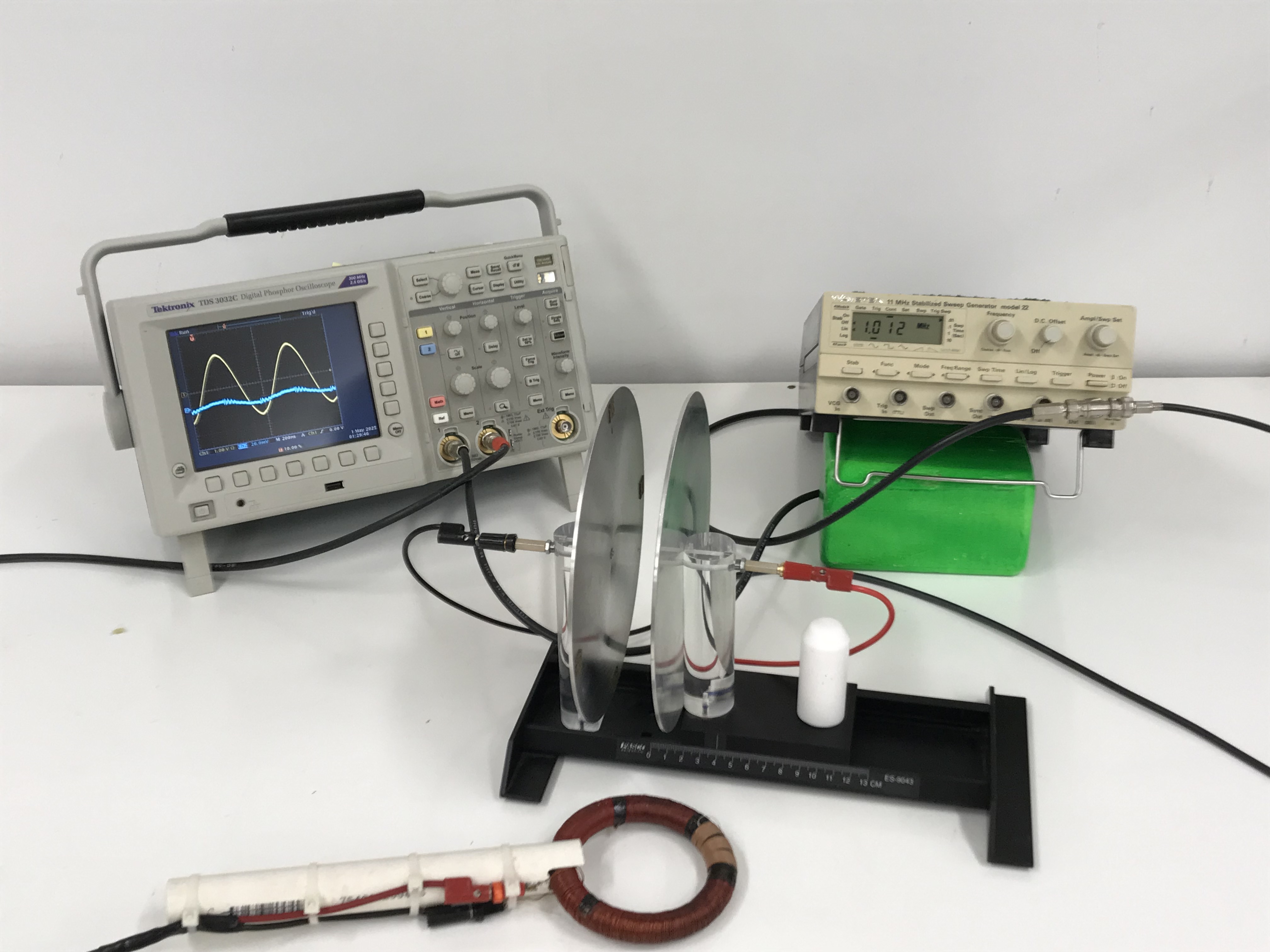

Hook the wave generator to an amplifier, and then connect the output of the amplifier to the parallel plate capacitor.  Connect the sensing coil to the input of the other amplifier which is connected to a speaker.  An amplified frequency of about 50 Hz going into the capacitor works well.  Move the sensing coil around the capacitor plates.  Notice that the coil only picks up a signal when held in the correct polarized position.

EXPERIMENTAL NOTES:

Run this at a frequency of 1000 to 3000 Hz.  Use the smaller set of parallel plates.  The current setup does not need the "Clamp box". Channel L volume on the Pyle Amplifier should be up half way. Sensor volume on the other amplifier should be up all the way.  NOTE:  We are probably hearing electrostatic components and not the true displacement current.
