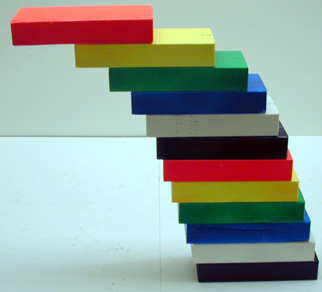

multicolored 2x4 blocks, stacked



Code Number: 1J11.20

Demo Title: 2 x 4 Tower

Condition: Good

Principle: Center of Mass

Area of Study: Mechanics

Equipment:

2 x 4 blocks

Procedure:

The 2 x 4 blocks are all numbered and have marks on them.  Starting with "12" on the bottom, place the blocks on top of each other and slide them out to the marked spot.  When you get done, they should form an arc with the top block being outside the area covered by the base of the bottom block.

References:

  • George K. Horton, Brian E. Holton, and Eugene Freidkin, "The Leaning Tower of Tiles—Revisited", TPT, Vol. 35, #4, Apr. 1997, p. 214.
  • Paul Chagnon, "Animated Displays III: Mechanical Puzzles", TPT, Vol. 31, #1, Jan. 1993, p. 32.
  • Joseph L. Spradley, "Meter‐Stick Mechanics", TPT, Vol. 28, #5, May 1990, p. 312.
  • Iain MacInnes, "An Instructive Mobile", TPT, Vol. 27, #1, Jan. 1989, p. 42.
  • D. Nachigall, "No Cement Needed!", TPT, Vol. 26, #4, Apr. 1988, p. 200.
  • Thomas D. Rossing, "A Dramatic Demonstration of Stability", TPT, Vol. 24, #8, Nov. 1986, p. 482.
  • Robert Ehrlich, "Stability of a Pile of Meter Sticks", TPT, Vol. 23, #8, Nov. 1985, p. 489.
  • D. J. Steck, "An Experiment in Discovery", TPT, Vol. 18, #9, Dec. 1980, p. 672.
  • John F. Hall, "Fun With Stacking Blocks", AJP, Vol. 73, #12, Dec. 2005, p. 1107.
  • R. P. Boas Jr, "Cantilevered Books", AJP, Vol. 41, #5, May 1973, p. 715.
  • "M-490. Corbeled Meter Sticks", DICK and RAE Physics Demo Notebook, 1993.
  • G. D. Freier and F. J. Anderson, "Mp-11", A Demonstration Handbook for Physics.
  • Julien Clinton Sprott, "1.17 Stack of Cards", Physics Demonstrations, ISBN 0-299-21580-6, p. 49.
  • "Take It From the Top: How Does This Stack Up?",  From the Exploratorium Science Snackbook Series, "Force and Motion", p. 93.
  • Robert Ehrlich, "D.1. Stacking Metersticks", Turning the World Inside Out and 174 Other Simple Physics Demonstrations, p. 38 - 39.
  • Christopher P. Jargodzki and Franklin Potter, "271. A Staircase to Infinity", Mad About Physics, p. 109, 245.
  • Janice VanCleave, "74. Magic Box", Teaching the Fun of Physics, p. 113.
  • Janice VanCleave, "71. Over the Edge", Teaching the Fun of Physics, p. 110.
  • Janice VanCleave, "51. Rock Bridge", Earth Science for Every Kid: 101 Easy Experiments That Really Work, p. 115.
  • Janice VanCleave, "Rock Bridge", 201 Awesome, Magical, Bizarre, & Incredible Experiments, p. 76.
  • Jearl Walker, "1.66, Leaning Tower of Blocks", The Flying Circus of Physics Ed. 2, p. 32.
  • Jearl Walker, "The Leaning Tower of Books", The Flying Circus of Physics with Answers, p. 2.5.
