Wooden Track (Non-Level), and Double Cone for Wooden Track



Code Number: 1J20.70

Demo Title: Rolling Uphill

Condition: Good

Principle: Exchange of Potential and Kinetic Energy

Area of Study: Mechanics

Equipment:

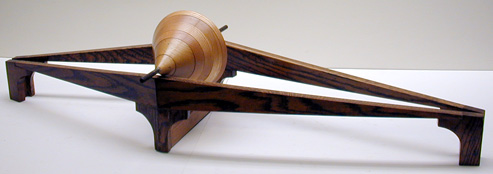

Wooden Track (Non-Level), and Double Cone for Wooden Track.

Procedure:

Move the cone to the end of the track and let it go, it will appear to roll uphill.  However, if you observe the axle of the cone you will see that it is actually traveling downward.

References:

  • Nuri Balta, "New Versions of the Rolling Double Cone", TPT, Vol. 40, #3, Mar 2002, p. 156.
  • Paul Hewitt, "Figuring Physics", TPT, Vol. 38, #8, Nov. 2000, p. 482.
  • Martin Gardner, "The Ball that Rolls Uphill", TPT, Vol. 34, #6, Sept. 1996, p. 461.
  • Paul Chagnon, "Animated Displays III: Mechanical Puzzles", TPT, Vol. 31, #1, Jan. 1993, p. 32.
  • R. D. Edge, "String and Sticky Tape Experiments, An 'Antigravity" Experiment', TPT, Vol. 16, #1, Jan. 1978, p. 46.
  • Sohang C. Gandhi and Costas J. Efthimiou, "The Ascending Double Cone: A Closer Look at a Familiar Demonstration", European Journal of Physics, June 2005, p. 681.
  • "M-482: Double Cone - High Wire Toy", DICK and RAE Physics Demo Notebook.
  • Freier and Anderson, "Mr-1", A Demonstration Handbook for Physics.
  • Tik Liem, "Rolling Uphill", Investigation to Science Inquiry, p. 317.
  • Martin C. Sagendorf, "Why 'Uphill'?", Physics Demonstration Apparatus, 2009. p. 93.
  • Jodi and Roy McCullough, "Energy with Gravitation", The Role of Toys in Teaching Physics, p. 4.86.
  • Martin Gardner, "91, The Ball That Rolls Up Hill", Smart Science Tricks, p. 134.
  • Martin Gardner, "Anti-Gravity Cone", Entertaining Science Experiments with Everyday Objects, p. 87.
  • Christopher P. Jargodzki and Franklin Potter, "230, Antigravity", Mad About Physics, p. 91, 227.
  • Janice VanCleave, "Up Hill", 200 Gooey, Slippery, Slimy, Weird, Funny Experiments, p. 94.
  • Bobby Mercer, "Rolling Uphill", Junk Drawer Physics, IBSN 978-1-61374-920-3, p. 14 - 16.
  • Joseph Frick, "# 63 - The Cone Which Runs Up Hill", Physical Technics: Or, Practical Instructions for Making Experiments in Physics and the Construction of Physical Apparatus with the Most Limited Means, p. 74.

1J20.70a - Rolling Uphill

1J20.70 - University of Maryland QOTW Question #62

1J20.70 - University of Maryland QOTW Answer #62
