Code Number: 6A65.31

Demo Title: Distortion - Coma

Condition: Good

Principle: Off Axis Lens Effects

Area of Study: Optics

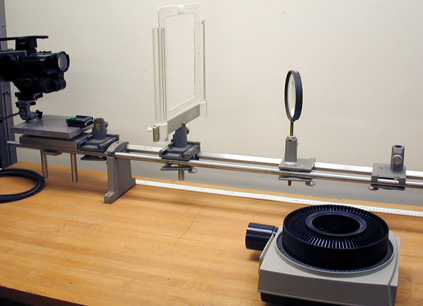

Equipment:

Optics Table, 30 cm focal length lens, 48 cm focal length lens, Slide Projector (Distant Light).

Procedure:

Coma - Set up is the same as that for Chromatic Aberration. Turn the lens so that it is no longer perpendicular to the angle of the light from the slide projector. A figure that looks like a bow tie will be produced with one lobe red ringed and one lobe blue ringed.

References:

John H. Moore, Christopher C. Davis, Michael A. Coplan, "Coma", Building Scientific Apparatus 2nd Edition, p. 146.
C. Harvey Palmer, "Experiment A13: The Off-Axis Aberrations of Lenses", Optics - Experiments and Demonstrations, John Hopkins Press, 1962.
